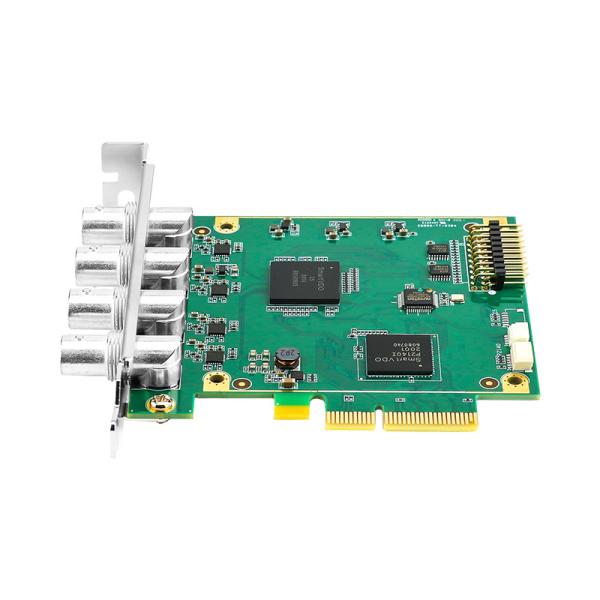

Webcasting Live Streaming Video with 4 SDI Input PCIe 4U Capture Card and SDK Support

Name: Webcasting Live Streaming Video with 4 SDI Input PCIe 4U Capture Card and SDK Support
Brand: TCHD
Price: 490.00 USD

Wholesale Webcasting Live Streaming Video with 4 SDI Input PCIe 4U Capture Card and SDK Support from china suppliers

Place of Origin : Beijing, China

Brand Name : TCHD

Channels : 4

Video Compression Format : H.264

SDK : SDK support

Compression mode : Software compression

Operation System Support : Windows,Linux

Nature : 1080P60 live streaming

Input : SDI x 4

Output : HTTP/RTMP/RTSP

Video encoding : H.264

Resolution : 1920x1080P60

Type : PCIe 4U

Application : Live streaming, webcasting, video conference, game capture

Packaging Details : Carton box

Supply Ability : 500 Piece/Pieces per Month

MOQ : 2 pieces

Price : $490.00 - $580.00/pieces

Contact Now

4 channel PCIe 4U SDI SDK support webcasting video and audio capture card

Introduction

TC400N4SDI with 4 SDI inputs, support 1080p/ 720p / 480p / 480i, 1080i full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. Can connect another PC display card to record directly.

Model	400N4 SDI
Max Input Resolution	In 1920×1080p@60/50 → Out1920×1080p@60/50
Recording Mode	Software Compression, Real-Time Mode
Dimension	93.98×91.5 mm
Interface	PCIe×4( Gen2 )
Video input	4×SDI
Video Raw Data Format	YV12, NV12, YUY2, RGB24, RGB32, P010,
Video Raw Data Resolution	3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps
Recording Video Format	H.264 (Software Compression)
Color Format	Capture/Preview 4:4:4 8bit RGB24 4:4:4 8bit RGB32 4:2:2 8bit YUV2 4:2:0 8bit YV12,NV12 4:2:0 10bit P0110
Video Processing	Video, Audio and VANC Capture Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances
Audio Input	4×Stereo Embedded Audio
Audio Format	Stereo / 16-bit / 32000 ~ 48000Hz
Software Support	Vmix/OBS/ZOOM/Skype/Teams/Discord/Slack/Cisco Webex/GoTo Meeting *DirectShow/V4L2 Compatible Software
System Requirement
OS Support	Windows 7 / Windows 8 / Windows 8.1 / Windows 10/ Windows11 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2,NANO,AGX Xavier, Xavier NX

Applications
